Wet pan mill

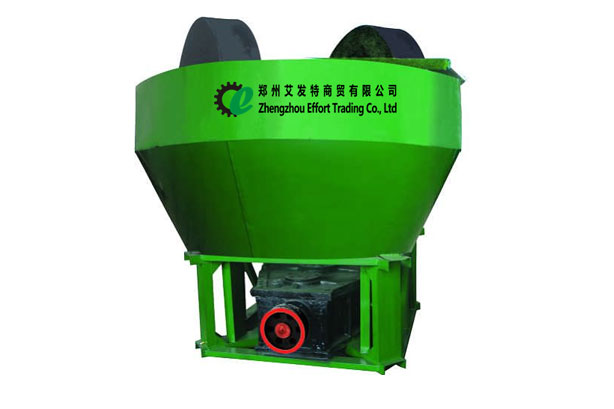

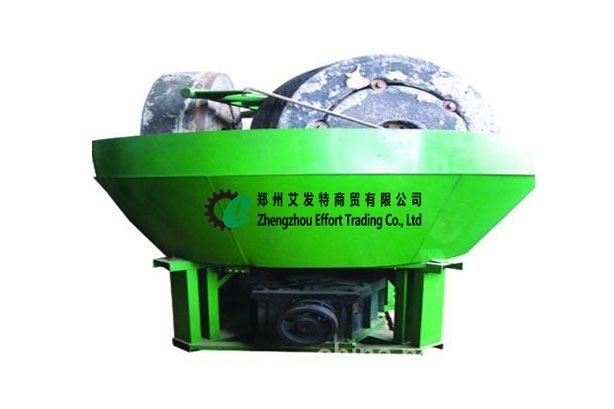

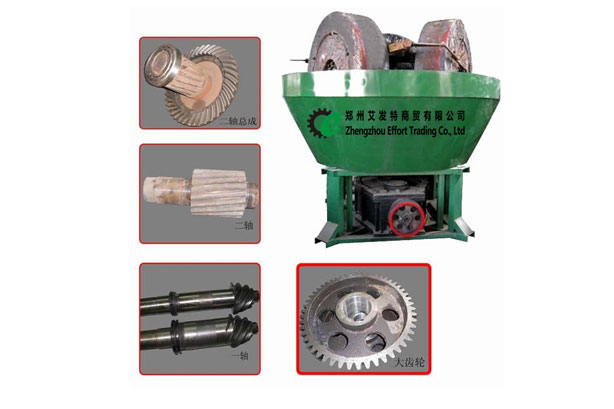

Selling roll gold machine/wet pan mill/wet grinding mill:
The gold roll machine is also called wet grinding machine. It is praised by users because of it has the features of low investment, high production capacity, low consumption, good efficiency, easy installation and maintenance. It is the excellent equipment which can instead of ball mill. It is perfect equipment for medium-sized and small enterprises. The roll gold machine is mainly used for separate gold, silver, lead, zinc, iron, molybdenum, cooper, antinomy and so on.

    • The gold roll machine is also called wet grinding machine. It is praised by users because of it has the features of low investment, high production capacity, low consumption, good efficiency, easy installation and maintenance. It is the excellent equipment which can instead of ball mill. It is perfect equipment for medium-sized and small enterprises. The roll gold machine is mainly used for separate gold, silver, lead, zinc, iron, molybdenum, cooper, antinomy and so on.

      Selling roll gold machine/wet pan mill/wet grinding mill:
      The operation and maintenance:
      The raw material should be put into the machine after the machine running normally.
      This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
      The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
      The bearing part should be add butter regularly.
      Every bolts should be checked to avoid flexible.
      The bearing should be changed in time if it is damaged to avoid damage other parts.
      While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
      The motor V-belt should be removed while examine and repair the machine for your safe.

    Model Specification Input size(mm) Rotate Speed (r/min) Powder(kw) Weight(t) Capacity (T/H)
    1600 1600×400×200×500±20mm 30mm 20-22 25KW 14.5 3.0
    1500 1500×350×200×460±20mm 30mm 20-22 22KW 13.5 2.0
    1400 1400×250×150×350±20mm 30mm 16-18 18.5kw 8.5 1.5
    1200 1200×200×80×250±20mm 30 mm 17-19 7.5 5.5 1
    1100 1100×200×80×250±20mm 17-19 7.5 5 0.9
    1000 1000×200×80×250±20mm 13-15 5.5 4.5 0.8
    900 900×200×80×250±20mm 30 mm 13-15 3 2.6 0.6
    800 800×200×80×250±20mm 30 mm 13-15 3 2.5 0.4
